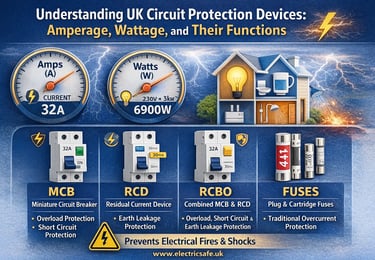

Understanding UK Circuit Protection Devices: Amperage, Wattage, and Their Functions

Electrical safety in the UK depends heavily on the correct use of circuit protection devices. These devices quietly work in the background to prevent fires, electric shocks, and damage to appliances. Whether you’re a homeowner, landlord, trainee electrician, or business owner, understanding amps, watts, and how protection devices function helps you make safer and smarter decisions.

This guide explains UK circuit protection in a simple but detailed way, without technical overload.

What Are Circuit Protection Devices?

Circuit protection devices are components installed in a consumer unit (fuse box) that:

• Monitor electrical flow

• Cut power automatically when something goes wrong

• Protect:

  • People

  • Wiring

  • Electrical equipment

  • Buildings

In the UK, these devices must comply with BS 7671 (IET Wiring Regulations).

Why Circuit Protection Is Essential in UK Electrical Systems

Without protection, even a small fault can cause serious damage.

Main reasons circuit protection is critical:

• Prevents electrical fires caused by overheating cables

• Reduces risk of electric shock

• Protects appliances from overload damage

• Ensures compliance with UK safety laws

• Improves reliability of electrical installations

Understanding Amperage (Amps) in UK Electrical Circuits

What Is Amperage?

Amperage (A) measures the amount of electrical current flowing through a circuit.

Think of it as:

• The volume of electricity moving through cables

Why Amps Matter in Circuit Protection

Every cable and appliance has a maximum safe current rating.

If current exceeds this limit:

• Cables heat up

• Insulation melts

• Fire risk increases

Common UK Circuit Amperage Ratings

• 6A

  • Lighting circuits

• 16A / 20A

  • Small power or dedicated circuits

• 32A

  • Ring final circuits (sockets)

• 40A – 50A

  • Electric showers

• 63A – 100A

  • Main incoming supply

Circuit breakers are chosen specifically to match cable size and load, not just appliance demand.

Understanding Wattage (Watts) in Electrical Systems

What Is Wattage?

Wattage (W) measures electrical power consumption.

Formula used in the UK:

• Watts = Volts × Amps

Since UK voltage is typically 230V, power calculations are straightforward.

Why Wattage Is Important for Circuit Design

Wattage helps determine:

• How much power appliances use

• Whether a circuit can handle the load

• If a breaker may trip frequently

Examples of Typical Appliance Wattage

• LED bulb: 5–10W

• Kettle: 2,000–3,000W

• Electric oven: 2,500–5,000W

• Shower: 7,500–10,500W

High-wattage appliances often require dedicated circuits.

Relationship Between Amps, Watts, and Circuit Protection

Understanding how amps and watts work together is key to proper protection.

How They Interact

• High wattage = higher current draw

• Higher current = more heat in cables

• Circuit breakers trip when amps exceed safe limits

Why Breakers Are Rated in Amps, Not Watts

• Current directly causes overheating

• Cable safety depends on current, not power

• Voltage is fixed in UK homes (230V)

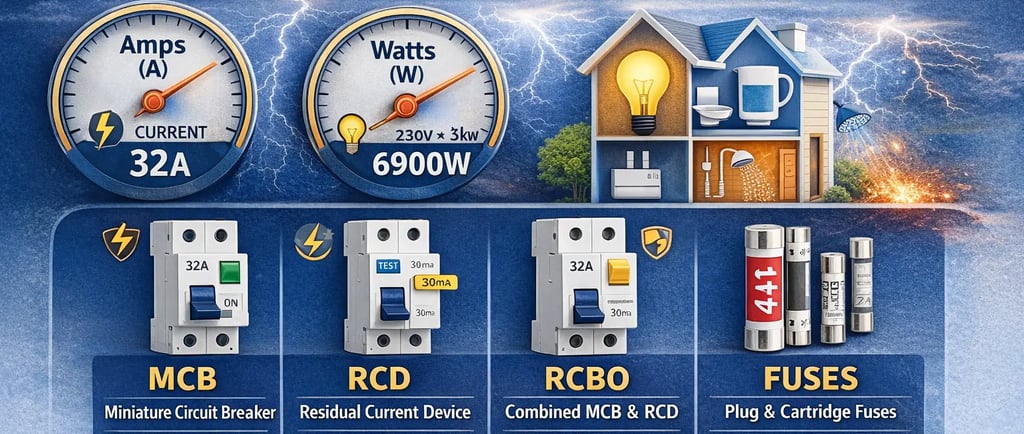

Main Types of UK Circuit Protection Devices

MCB (Miniature Circuit Breaker)

What Is an MCB?

An MCB protects against:

• Overloads

• Short circuits

It automatically switches off power when current exceeds safe levels.

How an MCB Works

• Uses a thermal mechanism for overloads

• Uses a magnetic mechanism for short circuits

Common MCB Ratings in UK Homes

• 6A – lighting

• 16A / 20A – radial sockets

• 32A – ring circuits

Advantages of MCBs

• Resettable (no fuse replacement)

• Reliable and quick response

• Easy fault identification

RCD (Residual Current Device)

What Is an RCD?

An RCD protects people, not appliances.

It detects current leakage to earth.

Why RCDs Are Critical for Safety

• Trips within 30 milliseconds

• Prevents fatal electric shocks

• Required by UK regulations for:

  • Socket outlets

  • Bathrooms

  • Outdoor circuits

Typical RCD Sensitivity

• 30mA – personal protection

• 100mA / 300mA – fire protection (commercial)

RCBO (Residual Current Breaker with Overcurrent)

What Is an RCBO?

An RCBO combines:

• MCB (overload & short circuit protection)

• RCD (earth leakage protection)

Why RCBOs Are Preferred in Modern Installations

• One circuit trips, not the whole board

• Easier fault finding

• Better reliability

• Fully compliant with latest UK standards

Fuses (Traditional Protection Devices)

Where Fuses Are Still Used

• Plug tops (BS 1362)

• Older consumer units

• Some control panels

Common UK Plug Fuse Ratings

• 3A – lamps and electronics

• 5A – small appliances

• 13A – kettles, heaters

Fuses are simple but must be replaced after operation.

Surge Protection Devices (SPD)

What Is a Surge Protection Device?

An SPD protects equipment from voltage spikes caused by:

• Lightning

• Grid switching

• Power surges

Why SPDs Matter Today

• Modern homes contain sensitive electronics

• Smart devices are easily damaged

• Required in many new UK installations

How Circuit Protection Is Selected in the UK

Correct selection is based on engineering principles, not guesswork.

Key Factors Considered

• Cable size (mm²)

• Installation method

• Ambient temperature

• Load type

• Circuit length

• Fault current levels

Incorrect selection can:

• Cause nuisance tripping

• Overheat cables

• Fail inspections

Common Mistakes with Circuit Protection

Errors Often Seen in Properties

• Oversized breakers on small cables

• No RCD protection

• Mixed old and new protection devices

• Incorrect fuse ratings in plugs

• Ignoring manufacturer guidelines

These mistakes increase fire and shock risk.

UK Wiring Regulations and Compliance

Circuit protection must follow:

• BS 7671 (18th Edition + Amendments)

• Building Regulations Part P

• Local authority requirements

Failure to comply can result in:

• Failed EICR

• Invalid insurance

• Legal issues for landlords

How Circuit Protection Protects Against Electrical Fires

Electrical fires often start due to:

• Overloaded circuits

• Loose connections

• Faulty appliances

Protection devices reduce risk by:

• Cutting power before overheating

• Limiting fault duration

• Detecting earth leakage early

Signs Your Circuit Protection Needs Attention

Call a qualified electrician if you notice:

• Frequent tripping

• Burning smells

• Buzzing consumer unit

• Warm sockets or switches

• Flickering lights under load

These are early warning signs.

Final Thoughts: Why Understanding Circuit Protection Matters

Understanding amperage, wattage, and protection devices gives you:

• Better safety awareness

• Smarter appliance use

• Confidence when speaking to electricians

• Protection for your property and family

Circuit protection is not just about compliance — it’s about preventing disasters before they happen.
